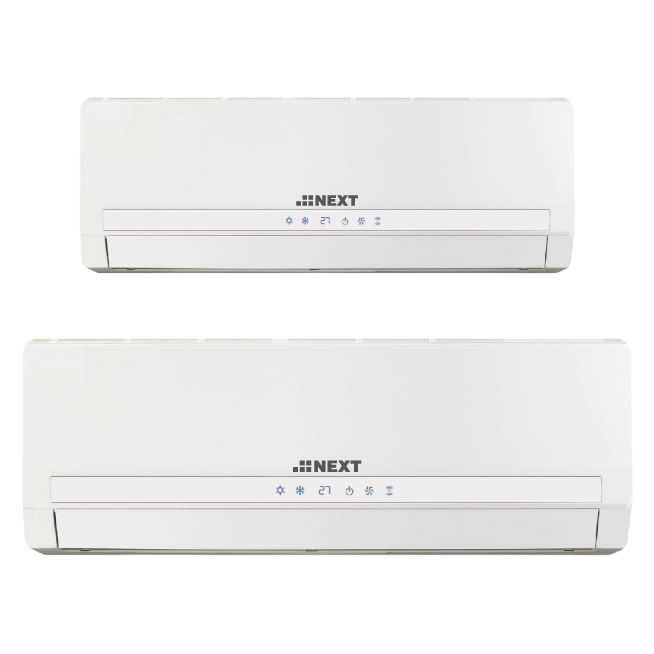

FAN COIL WALL

The FCW line has been designed exploiting all suggestions and recommendations of people involved in the domain: the designers, the installers, the maintainers, the end users, in order to take maximum care of any small detail and in order to guarantee easy installation, use and maintenance.
Many small solutions, many small details, many small smart things … which all together make a big difference !
Big care in the components choice, big care in the production and in the tests on 100% of the units, guarantee to the client, to the designer, to the end user a solid quality, to touch by hand.

• Beautiful, smart and modern design
• Adjustable and motorised air supply fins with different positions
• AC~230V-single-phase motor with 3-Speed (automatic + manual)
• Several functioning mode: automatic, cooling, dry, ventilation and  heating

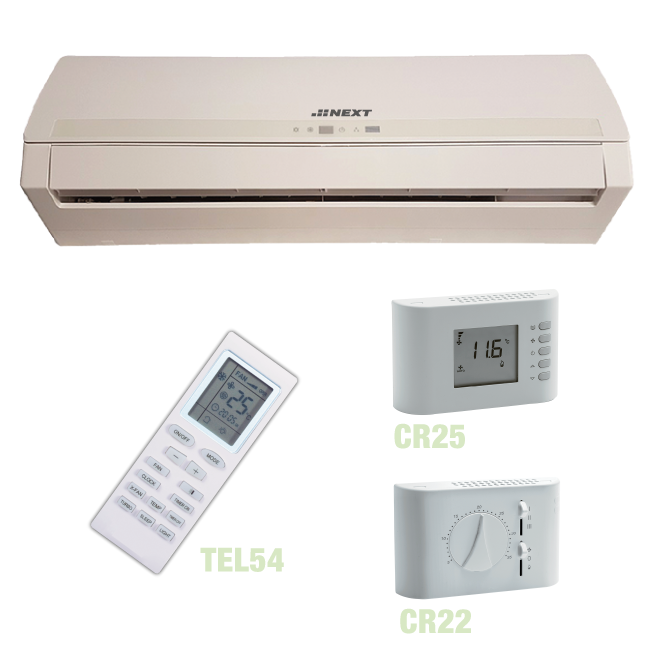

• Timer and several others programmable functions with the I.R. control
• Control with wired remote control also
• Water low temperature sensor
• Electronic card with AUTORESTART function

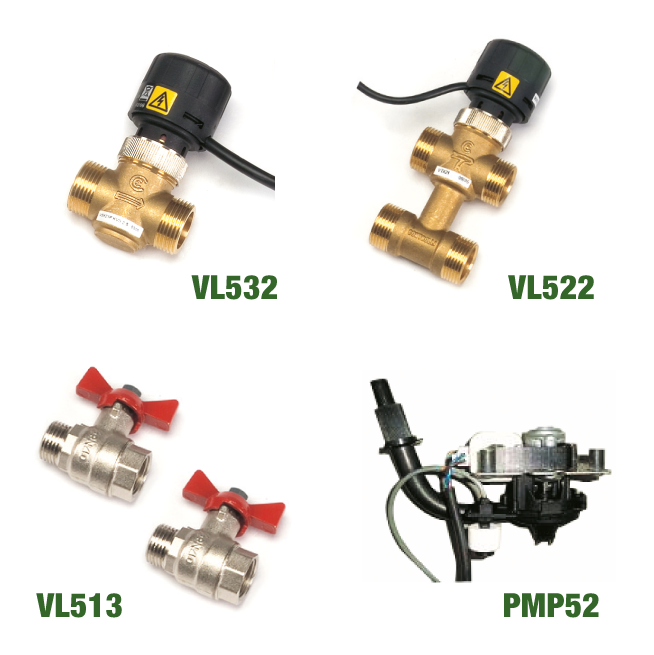

• The terminal board with an output to control an eventual electro-valve (2 or 3 way) 230Vac on/off

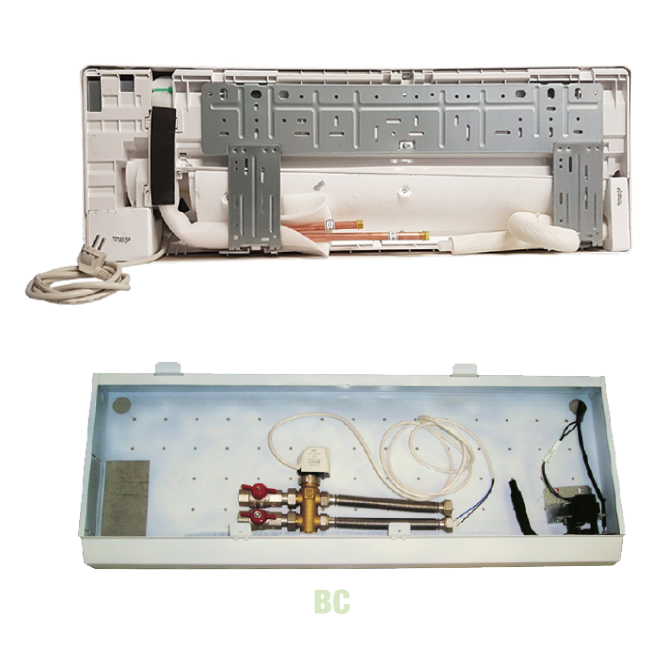

• The unit is provided with mounting bracket made of extremely thick galvanized steel-sheet with holes enabling wall mounting
• High efficiency air filter, easily removable and cleanable
• Working with water temperature limit 80°C
• Wide variety of models and accessories supplied mounted and tested at the factory to guarantee simplicity and minimum installation times.
